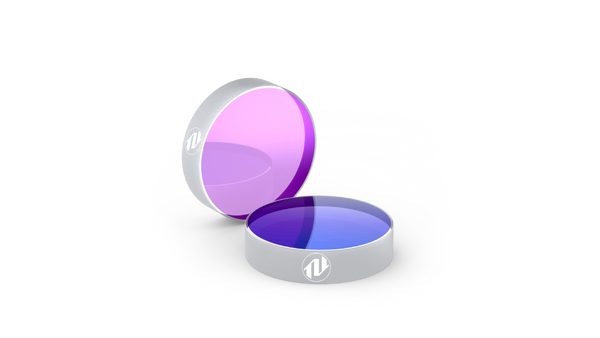

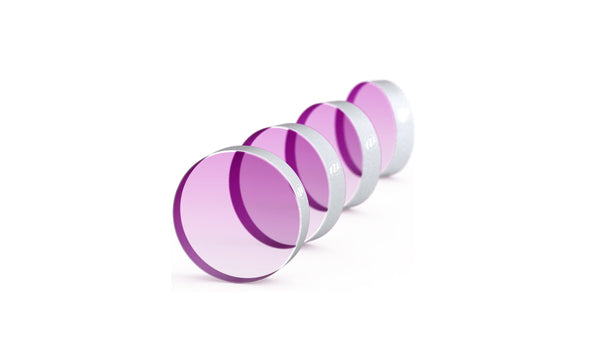

Ultrafast Laser Mirrors

OPTOMAN’s Ultrafast Laser Mirrors are designed to provide high reflectivity and high LIDT for ultrashort laser pulses, while preserving their temporal characteristics.

By minimizing Group Delay Dispersion (GDD) across the specified wavelength range, these mirrors combat the effects of dispersive temporal broadening and compression. The combination of low GDD and high reflectivity is achieved using precisely engineered Ion Beam Sputtered (IBS) coatings that are fully resistant to mechanical wear, humidity, and temperature fluctuations, ensuring reliable laser performance under any operating conditions. Ultrafast Laser Mirrors are ideal for systems based on Yb:YAG, Yb:KGW, Yb:KYW, Yb-doped fiber, and Ti:Sapphire lasers, including their second, third, and fourth harmonics. Applications include materials processing, spectroscopy, nonlinear optics, and biomedical technologies.

Are these mirrors suitable for your femtosecond laser system? Will they maintain temporal pulse characteristics? Can they handle high peak intensity? These are the questions you won’t need to ask with OPTOMAN’s Ultrafast Laser Mirrors – explore the options below.

Free US shipping on orders over 800 USD. Quantity discounts: 5pcs – 5% off 10pcs - 15% off 20pcs - 25% off
Ultrafast Laser Mirrors

PP-UVFS-25.4-6.35-BBHR51

Type: Broadband
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: Rp>99.9% @ 730 – 870 nm + Rs>99.9% @ 700 – 920 nm
Angle of incidence, °: 45
Design Wavelength, nm: 700-920
Flatness, S1 @633 nm: <λ/10 over 11mm area
UNIT PRICE :€200,00
Qty 10+ > €170,00/piece
Available : 1
PP-UVFS-50.8-9.52-MW61

PP-UVFS-50.8-9.52-MW61

Type: Multiwavelength
Dimensions, mm: 50.8
Thickness, mm: 9.52
Coating: HRs > 99.9% @ 385-415 nm + 770-830 nm HRp > 99.8% @ 395-415 nm + HRp > 99.9% @770-820 nm
Angle of incidence, °: 45
Design Wavelength, nm: 800+400
Flatness, S1 @633 nm: <λ/6 over 10 mm area
UNIT PRICE :€310,00
Qty 10+ > €263,50/piece
Available : 3
PP-UVFS-25.4-6.35-MW61

PP-UVFS-25.4-6.35-MW61

Type: Multiwavelength
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRs > 99.9% @ 385-415 nm + 770-830 nm HRp > 99.8% @ 395-415 nm + HRp > 99.9% @770-820 nm
Angle of incidence, °: 45
Design Wavelength, nm: 800+400
Flatness, S1 @633 nm: <λ/6 over 10 mm area
UNIT PRICE :€170,00
Qty 10+ > €144,50/piece
Available : 10+
PP-UVFS-12.7-6.35-MW61
Sold out

PP-UVFS-12.7-6.35-MW61

Type: Multiwavelength
Dimensions, mm: 12.7
Thickness, mm: 6.35
Coating: HRs > 99.9% @ 385-415 nm + 770-830 nm HRp > 99.8% @ 395-415 nm + HRp > 99.9% @770-820 nm
Angle of incidence, °: 45
Design Wavelength, nm: 800+400
Flatness, S1 @633 nm: <λ/6 over 10 mm area
Available : 0
Ultrafast Laser Mirrors

PP-UVFS-30.0-6.35-ULLM5

Type: Standard
Dimensions, mm: 30
Thickness, mm: 6.35
Coating: HRs>99.95% & HRp>99.9%@1010 - 1050 nm
Angle of incidence, °: 45
Design Wavelength, nm: 1030
Flatness, S1 @633 nm: <λ/4 over CA
UNIT PRICE :€235,00
Qty 10+ > €199,75/piece
Available : 5
Ultrafast Laser Mirrors

PP-UVFS-25.4-6.35-ULLM11

Type: UV
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRs>98.5%@235 - 280 nm & HRp>97.5%@241 - 271 nm
Angle of incidence, °: 45
Design Wavelength, nm: 257
Flatness, S1 @633 nm: <λ/10 over 15 mm area
UNIT PRICE :€200,00
Qty 10+ > €170,00/piece
Available : 10+
Ultrafast Laser Mirrors

PP-UVFS-25.4-6.35-UBBHR7

Type: Broadband
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRs>99.95% & HRp>99.9%@ 980 - 1080 nm
Angle of incidence, °: 45
Design Wavelength, nm: 980-1080
Flatness, S1 @633 nm: <λ/6 over CA
UNIT PRICE :€160,00
Qty 10+ > €136,00/piece
Available : 10+
Ultrafast Laser Mirrors

PP-UVFS-50.8-9.52-LLM198

Type: Multiwavelength
Dimensions, mm: 50.8
Thickness, mm: 9.52
Coating: Rs > 99.9% @500-540nm + 1000-1070 nm, Rp > 99.8% @507-527nm Rp > 99.9% @1005-1070nm
Angle of incidence, °: 45
Design Wavelength, nm: 1030+515
Flatness, S1 @633 nm: <λ/6 over 40mm area
UNIT PRICE :€380,00
Qty 10+ > €323,00/piece
Available : 10+
Ultrafast Laser Mirrors

PP-UVFS-12.7-6.35-LLM197

Type: UV
Dimensions, mm: 12.7
Thickness, mm: 6.35
Coating: HR>99.9% @ 343 nm
Angle of incidence, °: 0-10
Design Wavelength, nm: 343
Flatness, S1 @633 nm: <λ/8 over 10mm area
UNIT PRICE :€100,00
Qty 10+ > €85,00/piece
Available : 10+
Ultrafast Laser Mirrors

PP-UVFS-50.8-9.52-LLM197

Type: UV
Dimensions, mm: 50.8
Thickness, mm: 9.52
Coating: HR>99.9% @ 343 nm
Angle of incidence, °: 0-10
Design Wavelength, nm: 343
Flatness, S1 @633 nm: <λ/8 over 30mm area
UNIT PRICE :€300,00
Qty 10+ > €255,00/piece
Available : 10+
Ultrafast Laser Mirrors

PP-UVFS-25.4-6.35-LLM197

Type: UV
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HR>99.9% @ 343 nm
Angle of incidence, °: 0-10
Design Wavelength, nm: 343
Flatness, S1 @633 nm: <λ/8 over 17mm area
UNIT PRICE :€180,00
Qty 10+ > €153,00/piece
Available : 10
PP-UVFS-50.8-9.52-LLM186

PP-UVFS-50.8-9.52-LLM186

Type: SuperHero Power
Dimensions, mm: 50.8
Thickness, mm: 9.52
Coating: HRsp>99.9% @ 515 nm
Angle of incidence, °: 45
Design Wavelength, nm: 515
Flatness, S1 @633 nm: <λ/10 over 15mm area
UNIT PRICE :€350,00
Qty 10+ > €297,50/piece
Available : 10+
Product Code Status
Limited supply products have limited stock and variable lead times
 Type Dimensions, mm Thickness, mm Coating Design Wavelength, nm Angle of incidence, ° Flatness Unit Price, EUR Available Quantity Buy
Limited Supply Broadband 25.4 6.35 Rp>99.9% @ 730 – 870 nm + Rs>99.9% @ 700 – 920 nm 700-920 45 <λ/10 over 11mm area €200,00
1
Limited Supply Multiwavelength 50.8 9.52 HRs > 99.9% @ 385-415 nm + 770-830 nm HRp > 99.8% @ 395-415 nm + HRp > 99.9% @770-820 nm 800+400 45 <λ/6 over 10 mm area €310,00
3
Limited Supply Multiwavelength 25.4 6.35 HRs > 99.9% @ 385-415 nm + 770-830 nm HRp > 99.8% @ 395-415 nm + HRp > 99.9% @770-820 nm 800+400 45 <λ/6 over 10 mm area €170,00
qty 10+ > €144,50 		10+
Limited Supply Multiwavelength 12.7 6.35 HRs > 99.9% @ 385-415 nm + 770-830 nm HRp > 99.8% @ 395-415 nm + HRp > 99.9% @770-820 nm 800+400 45 <λ/6 over 10 mm area
0
Limited Supply Standard 30 6.35 HRs>99.95% & HRp>99.9%@1010 - 1050 nm 1030 45 <λ/4 over CA €235,00
qty 5+ > €223,25 		5
Standard Supply UV 25.4 6.35 HRs>98.5%@235 - 280 nm & HRp>97.5%@241 - 271 nm 257 45 <λ/10 over 15 mm area €200,00
qty 10+ > €170,00 		10+
Standard Supply Broadband 25.4 6.35 HRs>99.95% & HRp>99.9%@ 980 - 1080 nm 980-1080 45 <λ/6 over CA €160,00
qty 10+ > €136,00 		10+
Standard Supply Multiwavelength 50.8 9.52 Rs > 99.9% @500-540nm + 1000-1070 nm, Rp > 99.8% @507-527nm Rp > 99.9% @1005-1070nm 1030+515 45 <λ/6 over 40mm area €380,00
qty 5+ > €361,00 		10+
Limited Supply UV 12.7 6.35 HR>99.9% @ 343 nm 343 0-10 <λ/8 over 10mm area €100,00
qty 10+ > €85,00 		10+
Limited Supply UV 50.8 9.52 HR>99.9% @ 343 nm 343 0-10 <λ/8 over 30mm area €300,00
qty 5+ > €285,00 		10+
Limited Supply UV 25.4 6.35 HR>99.9% @ 343 nm 343 0-10 <λ/8 over 17mm area €180,00
qty 10+ > €153,00 		10
Limited Supply SuperHero Power 50.8 9.52 HRsp>99.9% @ 515 nm 515 45 <λ/10 over 15mm area €350,00
qty 5+ > €332,50 		10+

If an official quotation is needed or products are not in stock, please send us a request.
Products marked as CUSTOMIZED may have a minimum order quantity rule when requesting for a quote.

In-stock items ship the next business day via DHL. Estimated delivery time: 1–2 business days (EU), 3–5 business days (Rest of World). View full shipping policy.
