Low GDD Ultrafast Laser Line Mirrors

Ultrafast Laser Mirrors

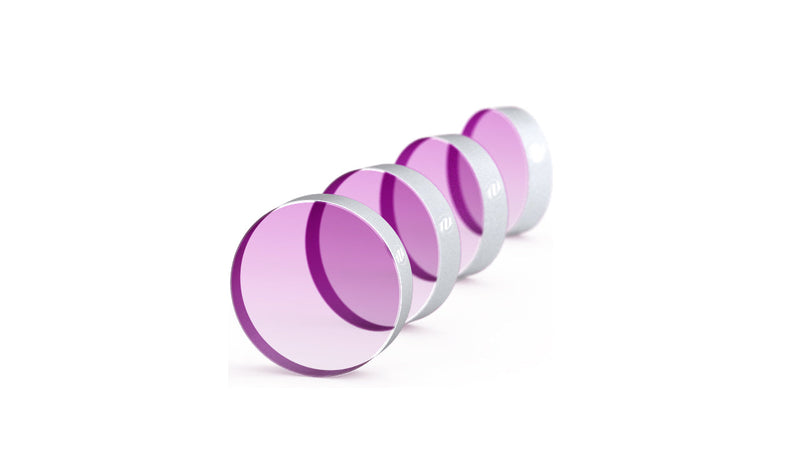

Ultrafast Laser Mirrors | PP-UVFS-12.7-6.35-ULLM9

€85,00

Qty 5+ > €80,75/piece
Qty 10+ > €72,25/piece
Qty 20+ > €63,75/piece
Discount will be applied in cart page
If an official quotation is needed or products are not in stock, please send us a request

This is a Limited Supply product. Availability and order size affect lead time and price.

Material: UVFS (C7980 0F)
Dimensions: 12.7 mm (+0/-0.1 mm)
Thickness: 6.35 mm (+/-0.1 mm)
Clear aperture: >80%
Surface quality, S1: 10-5 S-D per CA
Surface flatness, S1: <λ/8@633 nm per CA
Parallelism: <5 arcmin
Protective chamfers: 0.1-0.4 mm x 45 deg

Coatings (IBS)
S1: HR>99.9%@500 - 530 nm, AOI=0 deg,
|GDD R|<10 fs2
S2: Uncoated

LIDT (estimate):
> 0.12 J/cm2, 515 nm, 500 fs, 10 kHz
> 0.7 J/cm2, 515 nm, 10 ps, 10 kHz

Inspection Report

Rs>99.9% @ 500-530 nm, AOI=0° (ULLM9)

Calculated reflection values at 0° angle of incidence



Calculated GDD values at 0° angle of incidence

In-stock items ship the next business day via DHL. Estimated delivery time: 1–2 business days (EU), 3–5 business days (Rest of World). View full shipping policy.

These highly reflective dielectric mirrors designed for frequency-doubled Yb-based laser systems provide stable normal-incidence reflection of green femtosecond and picosecond pulses while preserving beam quality. They are widely used as end mirrors and folding mirrors in straight beam delivery sections, enclosed optical modules, and multi-pass beam routing where repeated reflections demand consistently low loss and predictable spectral performance at 515 nm. Their low absorption coatings and high LIDT support reliable long-term operation in high-power green-beam paths where even small thermal effects can impact stability and pointing.

Mirror can be used for II harmonic of Yb:YAG based ultrafast laser systems, such as:

  • “PHAROS” and “CARBIDE” by Light Conversion
  • “Monaco” series by Coherent
  • “FemtoBlade™” series by Lumentum
  • “TruMicro” series by TRUMPF
  • “IceFyre® FS” series by Spectra-Physics
  • “Satsuma” and “Tangor” series by Amplitude
  • “FemtoLux” series by EKSPLA
  • “FSL1030X2” by Thorlabs
  • “Jasper X1” by Fluence technology
  • “FS Series” by Photonics Industries

OPTOMAN’s Standard IBS-coated Ultrafast Laser Mirrors are designed to maintain high LIDT and minimize Group Delay Dispersion (GDD) for preserving pulse duration and handling high peak intensity of femtosecond and picosecond laser systems.

This mirror is optimized for operation at 515 nm and a 0° angle of incidence, providing high reflectivity and low GDD for ultrashort laser pulses.
