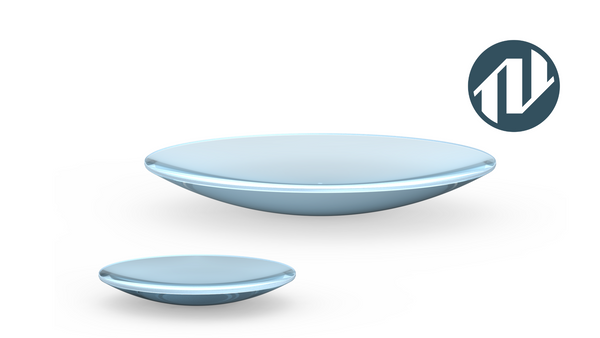

Spherical Mirrors

OPTOMAN’s Spherical Mirrors are precision optics designed to focus, collimate, or redirect laser beams using curved reflective surfaces. Coated with high-density Ion Beam Sputtered (IBS) coatings, they offer exceptional reflectivity, high LIDT, minimal scattering, and absorption – ideal for high average and peak power laser systems.

Available in a range of radii of curvature (ROC), our spherical mirrors come in both concave and convex form. Concave mirrors (negative ROC) focus light without introducing chromatic aberration – perfect for beam shaping, precision imaging, and illumination setups. Convex mirrors (positive ROC) expand field of view and produce virtual, upright images in diagnostic and optical systems.

Will these mirrors maintain my laser system’s beam quality? Will they be able to handle high power laser pulses and long-term exposure? These are the questions OPTOMAN takes care of with the Spherical Mirrors you’ll find below.

Disclaimer: where radius of curvature (ROC) values are not explicitly stated, they are calculated at the coating’s design wavelength and provided for reference only.

Quantity discounts: 5pcs – 5% off 10pcs – 15% off 20pcs – 25% off
PCV-R300-UVFS-50.8-ET9.52-UBBHR38

PCV-R300-UVFS-50.8-ET9.52-UBBHR38

Type: MPC
Dimensions, mm: 50.8
Thickness, mm: 9.52
Coating: HR>99.9% @ 925-1170 nm
Angle of incidence, °: 0
Design Wavelength, nm: 1030
UNIT PRICE :$967.72
Qty 10+ > $822.57/piece
Available : 2
PCV-R600-UVFS-76.2-ET12.7-UBBHR38
Sold out

PCV-R600-UVFS-76.2-ET12.7-UBBHR38

Type: MPC
Dimensions, mm: 76.2
Thickness, mm: 12.7
Coating: HR>99.9% @ 925-1170 nm
Angle of incidence, °: 0
Design Wavelength, nm: 1030
Available : 0
PCV-R300-UVFS-76.2-ET12.7-UBBHR38
Sold out

PCV-R300-UVFS-76.2-ET12.7-UBBHR38

Type: MPC
Dimensions, mm: 76.2
Thickness, mm: 12.7
Coating: HR>99.9% @ 925-1170 nm
Angle of incidence, °: 0
Design Wavelength, nm: 1030
Available : 0
Spherical mirrors

PCX-R5000-ULE-25.4-CT6.35-ULLM8SHL

Type: SuperHero Power
Dimensions, mm: 25.4
Coating: HR>99.9% @ 1030 nm
Angle of incidence, °: 0
Design Wavelength, nm: 1030
UNIT PRICE :$508.05
Qty 10+ > $431.85/piece
Available : 4
Spherical mirrors

PCV-R1500-UVFS-12.7-ET6.35-LLM313

Type: SuperHero Power
Dimensions, mm: 12.7
Coating: HR(R>99.95%)@1010-1060nm
Angle of incidence, °: 0
Design Wavelength, nm: 1030
UNIT PRICE :$108.87
Qty 10+ > $92.54/piece
Available : 10+
Spherical mirrors

PCV-R1000-UVFS-50.8-ET9.52-LLM253

Type: Ultrafast
Dimensions, mm: 50.8
Coating: HR>99.9% @ 480-540 nm
Angle of incidence, °: 0
Design Wavelength, nm: 515
UNIT PRICE :$459.67
Qty 10+ > $390.72/piece
Available : 4
PCX-R1000-UVFS-25.4-CT6.35-LLM188

PCX-R1000-UVFS-25.4-CT6.35-LLM188

Type: SuperHero Power
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HR>99.9% @ 515 nm
Angle of incidence, °: 0
Design Wavelength, nm: 515
UNIT PRICE :$453.62
Qty 10+ > $385.58/piece
Available : 1
PCV-R600-UVFS-76.2-ET12.7-BBHR38

PCV-R600-UVFS-76.2-ET12.7-BBHR38

Type: MPC
Dimensions, mm: 76.2
Thickness, mm: 12.7
Coating: HR_average >99.9% @ 900-1200 nm
Angle of incidence, °: 0
Design Wavelength, nm: 1030
UNIT PRICE :$1,451.58
Qty 10+ > $1,233.85/piece
Available : 1
Spherical Mirrors

PCV-R200-UVFS-25.4-ET6.35-ULLM8

Type: Ultrafast
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HR>99.9%@1010 - 1050 nm
Angle of incidence, °: 0
Design Wavelength, nm: 1030
UNIT PRICE :$229.83
Qty 10+ > $195.36/piece
Available : 10+
Spherical Mirrors

PCV-R500-UVFS-25.4-ET6.35-ULLM8

Type: Ultrafast
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HR>99.9%@1010 - 1050 nm
Angle of incidence, °: 0
Design Wavelength, nm: 1030
UNIT PRICE :$229.83
Qty 10+ > $195.36/piece
Available : 4
Spherical Mirrors

PCV-R600-UVFS-25.4-ET6.35-ULLM8

Type: Ultrafast
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HR>99.9% @ 1010 - 1050 nm
Angle of incidence, °: 0
Design Wavelength, nm: 1030
UNIT PRICE :$229.83
Qty 10+ > $195.36/piece
Available : 10+
Spherical Mirrors

PCV-R800-UVFS-25.4-ET6.35-ULLM8

Type: Ultrafast
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HR>99.9%@1010 - 1050 nm
Angle of incidence, °: 0
Design Wavelength, nm: 1030
UNIT PRICE :$229.83
Qty 10+ > $195.36/piece
Available : 10+
Product Code Status
Limited supply products have limited stock and variable lead times
 Type Curvature Dimensions, mm Coating Design Wavelength, nm Angle of incidence, ° ROC, mm Irregularity Unit Price, EUR Available Quantity Buy
Standard Supply MPC Plano - Concave 50.8 HR>99.9% @ 925-1170 nm 1030 0 -300 <λ/10 over CA $967.72
2
Limited Supply MPC Plano - Concave 76.2 HR>99.9% @ 925-1170 nm 1030 0 -600 <λ/10 over CA
0
Limited Supply MPC Plano - Concave 76.2 HR>99.9% @ 925-1170 nm 1030 0 -300 <λ/10 over CA
0
Limited Supply SuperHero Power Plano - Convex 25.4 HR>99.9% @ 1030 nm 1030 0 5000 <λ/8 over CA $508.05
4
Limited Supply SuperHero Power Plano - Concave 12.7 HR(R>99.95%)@1010-1060nm 1030 0 -1500 <λ/8 over CA $108.87
qty 10+ > $92.54 		10+
Limited Supply Ultrafast Plano - Concave 50.8 HR>99.9% @ 480-540 nm 515 0 -1000 <λ/10 over CA $459.67
4
Limited Supply SuperHero Power Plano - Convex 25.4 HR>99.9% @ 515 nm 515 0 1000 <λ/8 over CA $453.62
1
Limited Supply MPC Plano - Concave 76.2 HR_average >99.9% @ 900-1200 nm 1030 0 -600 <λ/8 over CA $1,451.58
1
Standard Supply Ultrafast Plano - Concave 25.4 HR>99.9%@1010 - 1050 nm 1030 0 -200 <λ/10 over CA $229.83
qty 10+ > $195.36 		10+
Limited Supply Ultrafast Plano - Concave 25.4 HR>99.9%@1010 - 1050 nm 1030 0 -500 <λ/10 over CA $229.83
4
Standard Supply Ultrafast Plano - Concave 25.4 HR>99.9% @ 1010 - 1050 nm 1030 0 -600 <λ/10 over CA $229.83
qty 10+ > $195.36 		10+
Standard Supply Ultrafast Plano - Concave 25.4 HR>99.9%@1010 - 1050 nm 1030 0 -800 <λ/10 over CA $229.83
qty 10+ > $195.36 		10+

If an official quotation is needed or products are not in stock, please send us a request.
Products marked as CUSTOMIZED may have a minimum order quantity rule when requesting for a quote.

In-stock items ship the next business day via DHL. Estimated delivery time: 1–2 business days (EU), 3–5 business days (Rest of World). View full shipping policy.
