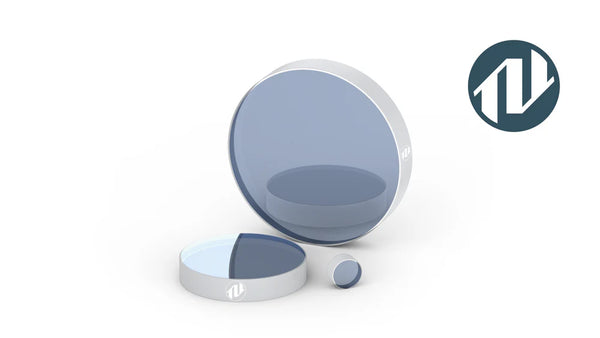

Laser Mirrors

PP-UVFS-12.7-6.35-LLM105

Type: UV
Dimensions, mm: 12.7
Thickness, mm: 6.35
Coating: HRsp>99.7% @ 355 nm
Wavelength, mm: 355
Angle of incidence, °: 32-45
Flatness, S1 @633 nm: <λ/8 over CA
UNIT PRICE :€110,00
Qty 10+ > €99,00/piece
Available : 10+
Laser Mirrors

PP-UVFS-25.4-6.35-MWM3

Type: Standard
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRs>99.95% @ 1064 nm + HRp>99.8% @ 1064nm + HR>99.5% @ 630 nm
Wavelength, mm: 1064 + 630
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/6 over CA
UNIT PRICE :€120,00
Qty 10+ > €108,00/piece
Available : 10+
Laser Mirrors

PP-UVFS-50.8-9.52-LLM182

Type: Standard
Dimensions, mm: 50.8
Thickness, mm: 9.52
Coating: HRs>99.9% @ 1064 nm
Wavelength, mm: 1064
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/6 over 25mm area
UNIT PRICE :€210,00
Qty 10+ > €189,00/piece
Available : 3
Laser Mirrors

PP-UVFS-25.4-3.0-PR145-AR582

Type: Partial Reflectors
Dimensions, mm: 25.4
Thickness, mm: 3
Coating: PRs=96.8% +/-0.2% @ 1150 nm
Wavelength, mm: 1150
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/8 over 10mm area
UNIT PRICE :€290,00
Qty 10+ > €261,00/piece
Available : 10
Laser Mirrors

PP-UVFS-25.4-6.35-MW55

Type: Standard
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRa> 99% @ 2940 nm + HRa > 98% @ 1064 nm + HRa >94% 532 nm + HRa > 95% @ 633 nm
Wavelength, mm: 2940 + 1064 + 532 + 633
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/6 over 12mm area
UNIT PRICE :€230,00
Qty 10+ > €207,00/piece
Available : 10+
Laser Mirrors

PP-UVFS-25.4-6.35-BBHR53

Type: UV
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRs>95% & HRp>90% @ 196-200 nm
Wavelength, mm: 196-200
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/5 over CA
UNIT PRICE :€140,00
Qty 10+ > €126,00/piece
Available : 5
Laser Mirrors

PP-UVFS-25.4-6.35-LLM158

Type: Standard
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRa>99.9% @ 1070 nm
Wavelength, mm: 1070
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/8 over 10mm area
UNIT PRICE :€120,00
Qty 10+ > €108,00/piece
Available : 10+
Laser Mirrors

PP-UVFS-25.4-6.35-MW50

Type: Standard
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRa>99% @ 2940 nm + 1535 nm + Ta>85% @ 635 nm
Wavelength, mm: 2940 + 1535
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/4 over 15mm area
UNIT PRICE :€347,00
Qty 10+ > €312,30/piece
Available : 10+
Laser Mirrors

PP-UVFS-38.1-6.35-MW50

Type: Standard
Dimensions, mm: 38.1
Thickness, mm: 6.35
Coating: HRa>99% @ 2940 nm + 1535 nm + Ta>85% @ 635 nm
Wavelength, mm: 2940 + 1535
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/4 over 15mm area
UNIT PRICE :€486,00
Qty 10+ > €437,40/piece
Available : 6
Laser Mirrors

PP-UVFS-12.7-6.35-BBHR47

Type: Broadband
Dimensions, mm: 12.7
Thickness, mm: 6.35
Coating: HRs_avg> 99% @ 630-1030 nm
Wavelength, mm: 630-1030
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/8 over 5mm area
UNIT PRICE :€85,00
Qty 10+ > €76,50/piece
Available : 6
Laser Mirrors

PP-UVFS-50.8-9.52-LLM135

Type: Low Loss
Dimensions, mm: 50.8
Thickness, mm: 9.52
Coating: HRa>99.9% @ 940 nm - 980 nm
Wavelength, mm: 940-980
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/3 over CA
UNIT PRICE :€418,00
Qty 10+ > €376,20/piece
Available : 10+
Laser Mirrors

PP-UVFS-25.4-6.35-MW44

Type: Standard
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRsp > 99.8% @ 1064 nm + 532 nm
Wavelength, mm: 1064 + 532
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/10 over 10mm area
UNIT PRICE :€306,00
Qty 10+ > €275,40/piece
Available : 10+
Product Code Type Dimensions, mm Thickness, mm Coating Wavelength, nm Angle of incidence, ° Flatness Unit Price, EUR Available Quantity Buy
UV 12.7 6.35 HRsp>99.7% @ 355 nm 355 32-45 <λ/8 over CA €110,00
qty 10+ €99,00
10+
Standard 25.4 6.35 HRs>99.95% @ 1064 nm + HRp>99.8% @ 1064nm + HR>99.5% @ 630 nm 1064 + 630 45 <λ/6 over CA €120,00
qty 10+ €108,00
10+
Standard 50.8 9.52 HRs>99.9% @ 1064 nm 1064 45 <λ/6 over 25mm area €210,00
qty 10+ €189,00
3
Partial Reflectors 25.4 3 PRs=96.8% +/-0.2% @ 1150 nm 1150 45 <λ/8 over 10mm area €290,00
qty 10+ €261,00
10
Standard 25.4 6.35 HRa> 99% @ 2940 nm + HRa > 98% @ 1064 nm + HRa >94% 532 nm + HRa > 95% @ 633 nm 2940 + 1064 + 532 + 633 45 <λ/6 over 12mm area €230,00
qty 10+ €207,00
10+
UV 25.4 6.35 HRs>95% & HRp>90% @ 196-200 nm 196-200 45 <λ/5 over CA €140,00
qty 10+ €126,00
5
Standard 25.4 6.35 HRa>99.9% @ 1070 nm 1070 45 <λ/8 over 10mm area €120,00
qty 10+ €108,00
10+
Standard 25.4 6.35 HRa>99% @ 2940 nm + 1535 nm + Ta>85% @ 635 nm 2940 + 1535 45 <λ/4 over 15mm area €347,00
qty 10+ €312,30
10+
Standard 38.1 6.35 HRa>99% @ 2940 nm + 1535 nm + Ta>85% @ 635 nm 2940 + 1535 45 <λ/4 over 15mm area €486,00
qty 10+ €437,40
6
Broadband 12.7 6.35 HRs_avg> 99% @ 630-1030 nm 630-1030 45 <λ/8 over 5mm area €85,00
qty 10+ €76,50
6
Low Loss 50.8 9.52 HRa>99.9% @ 940 nm - 980 nm 940-980 45 <λ/3 over CA €418,00
qty 10+ €376,20
10+
Standard 25.4 6.35 HRsp > 99.8% @ 1064 nm + 532 nm 1064 + 532 45 <λ/10 over 10mm area €306,00
qty 10+ €275,40
10+

Need custom?

Contact OPTOMAN!
