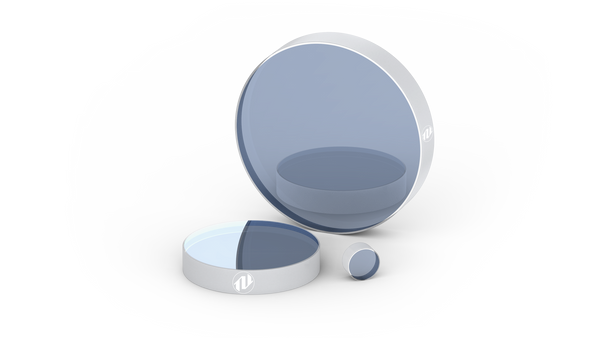

Laser Mirrors

IBS coated laser mirrors feature high reflectivity values as well as low absorption, making them a perfect choice for demanding applications. Here you will find suitable products for your CW, Nd:YAG and other nanosecond lasers as well as solutions at mid-IR region, such as Er:YAG laser.

Quantity discounts:
5pcs – 5% off
10pcs - 10% off
20pcs - 15% off
30pcs - 18% off
If an official quotation is needed or products are not in stock, please send us a request.
Products marked as CUSTOMIZED may have a minimum order quantity rule when requesting for a quote.
PP-Al2O3-12.7-3.0-LLM178

PP-Al2O3-12.7-3.0-LLM178

Type: Standard
Dimensions, mm: 12.7
Thickness, mm: 3
Coating: HR>99.7%@2940 nm
Wavelength, nm: 2940
Angle of incidence, °: 0
Flatness, S1 @633 nm: <λ/8 over CA
UNIT PRICE :€170,00
Qty 10+ > €153,00/piece
Available : 10+
Laser Mirrors

PP-UVFS-25.4-6.35-MWM3

Type: Standard
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRs>99.95% @ 1064 nm + HRp>99.8% @ 1064nm + HR>99.5% @ 630 nm
Wavelength, nm: 1064+630
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/6 over CA
UNIT PRICE :€120,00
Qty 10+ > €108,00/piece
Available : 10+
Laser Mirrors

PP-UVFS-25.4-6.35-MW55

Type: Standard
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRa> 99% @ 2940 nm + HRa > 98% @ 1064 nm + HRa >94% 532 nm + HRa > 95% @ 633 nm
Wavelength, nm: 2940+1064+532+633
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/6 over 12mm area
UNIT PRICE :€230,00
Qty 10+ > €207,00/piece
Available : 10+
Laser Mirrors
Sold out

PP-UVFS-25.4-6.35-BBHR53

Type: UV
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRs>95% & HRp>90% @ 196-200 nm
Wavelength, nm: 196-200
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/5 over CA
Available : 0
Laser Mirrors

PP-UVFS-25.4-6.35-MW50

Type: Standard
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRa>99% @ 2940 nm + 1535 nm + Ta>85% @ 635 nm
Wavelength, nm: 2940+1535
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/4 over 15mm area
UNIT PRICE :€347,00
Qty 10+ > €312,30/piece
Available : 10+
Laser Mirrors

PP-UVFS-38.1-6.35-MW50

Type: Standard
Dimensions, mm: 38.1
Thickness, mm: 6.35
Coating: HRa>99% @ 2940 nm + 1535 nm + Ta>85% @ 635 nm
Wavelength, nm: 2940+1535
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/4 over 15mm area
UNIT PRICE :€486,00
Qty 10+ > €437,40/piece
Available : 6
Laser Mirrors

PP-UVFS-50.8-9.52-LLM135

Type: Low Loss
Dimensions, mm: 50.8
Thickness, mm: 9.52
Coating: HRa>99.9% @ 940 nm - 980 nm
Wavelength, nm: 940-980
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/3 over CA
UNIT PRICE :€418,00
Qty 10+ > €376,20/piece
Available : 10+
Laser Mirrors

PP-UVFS-25.0-3.1-MW43

Type: Standard
Dimensions, mm: 25
Thickness, mm: 3.1
Coating: HR>99% @ 1064 nm + HR>98% @ 532 nm + HT>60% @ 635 + 650nm
Wavelength, nm: 1064+532
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/2 over 17mm area
UNIT PRICE :€151,00
Qty 10+ > €135,90/piece
Available : 10+
Laser Mirrors

PP-UVFS-26.0x40.0-9.52-LLM84

Type: UV
Dimensions, mm: 26 x 40
Thickness, mm: 9.52
Coating: HRa>99.5% @ 355 nm
Wavelength, nm: 355
Angle of incidence, °: 40-50
Flatness, S1 @633 nm: <λ/8 over CA
UNIT PRICE :€680,00
Qty 10+ > €612,00/piece
Available : 2
Laser Mirrors

PP-UVFS-25.4-6.35-LLM84

Type: UV
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: HRa>99.5% @ 355 nm
Wavelength, nm: 355
Angle of incidence, °: 40-50
Flatness, S1 @633 nm: <λ/8 over CA
UNIT PRICE :€120,00
Qty 10+ > €108,00/piece
Available : 10+
Laser Mirrors

PP-UVFS-25.4-6.35-LLM64

Type: UV
Dimensions, mm: 25.4
Thickness, mm: 6.35
Coating: Rs_abs>99.9% @ 355 nm
Wavelength, nm: 355
Angle of incidence, °: 45
Flatness, S1 @633 nm: <λ/8 over 20mm area
UNIT PRICE :€120,00
Qty 10+ > €108,00/piece
Available : 10+
Product Code Type Dimensions, mm Thickness, mm Coating Wavelength, nm Angle of incidence, ° Flatness Unit Price, EUR Available Quantity Buy
Standard 12.7 3 HR>99.7%@2940 nm 2940 0 <λ/8 over CA €170,00
qty 10+ > €153,00 		10+
Standard 25.4 6.35 HRs>99.95% @ 1064 nm + HRp>99.8% @ 1064nm + HR>99.5% @ 630 nm 1064+630 45 <λ/6 over CA €120,00
qty 10+ > €108,00 		10+
Standard 25.4 6.35 HRa> 99% @ 2940 nm + HRa > 98% @ 1064 nm + HRa >94% 532 nm + HRa > 95% @ 633 nm 2940+1064+532+633 45 <λ/6 over 12mm area €230,00
qty 10+ > €207,00 		10+
UV 25.4 6.35 HRs>95% & HRp>90% @ 196-200 nm 196-200 45 <λ/5 over CA
0
Standard 25.4 6.35 HRa>99% @ 2940 nm + 1535 nm + Ta>85% @ 635 nm 2940+1535 45 <λ/4 over 15mm area €347,00
qty 10+ > €312,30 		10+
Standard 38.1 6.35 HRa>99% @ 2940 nm + 1535 nm + Ta>85% @ 635 nm 2940+1535 45 <λ/4 over 15mm area €486,00
qty 5+ > €461,70 		6
Low Loss 50.8 9.52 HRa>99.9% @ 940 nm - 980 nm 940-980 45 <λ/3 over CA €418,00
qty 5+ > €397,10 		10+
Standard 25 3.1 HR>99% @ 1064 nm + HR>98% @ 532 nm + HT>60% @ 635 + 650nm 1064+532 45 <λ/2 over 17mm area €151,00
qty 5+ > €143,45 		10+
UV 26 x 40 9.52 HRa>99.5% @ 355 nm 355 40-50 <λ/8 over CA €680,00
2
UV 25.4 6.35 HRa>99.5% @ 355 nm 355 40-50 <λ/8 over CA €120,00
qty 10+ > €108,00 		10+
UV 25.4 6.35 Rs_abs>99.9% @ 355 nm 355 45 <λ/8 over 20mm area €120,00
qty 10+ > €108,00 		10+
