HWP-AS-ZO-1030-25.4-SHP

Zero-order Air-spaced Waveplates

Zero-order Air-spaced Waveplates | HWP-AS-ZO-1030-25.4-SHP

€380,00

If an official quotation is needed or products are not in stock, please send us a request

Material: Crystalline Quartz
Clear aperture: > 17 mm
Surface Quality (S1/S2): 20-10 scratch-dig (MIL-PRF-13830B)
Transmitted Wavefront Distortion (TWD): < λ/10 @ 633 nm
Beam deviation: <10 arcsec
Design wavelength: 1030 nm
Retardation order: Zero-Order
Retardation & Tolerance: λ/2 ± λ/300
Mount: Ø25.4 mm (+0/−0.1 mm) × 7.0 mm (±0.2 mm), black-anodized aluminum
Markings: “λ/2 @ 1030 nm”; fast axis indicated by dash marks

AR Coating (IBS): R < 0.1% per surface @ 1030 nm, AOI = 0°
LIDT (Estimated): >1.92 J/cm2, 1030 nm, 200 ns, 300 kHz



Learn more in the New Gen Superhero Power IBS Waveplates whitepaper.


R<0.1% @ 1030 nm, AOI = 0° per surface

In-stock items ship the next business day via DHL. Estimated delivery time: 1–2 business days (EU), 3–5 business days (Rest of World). View full shipping policy.

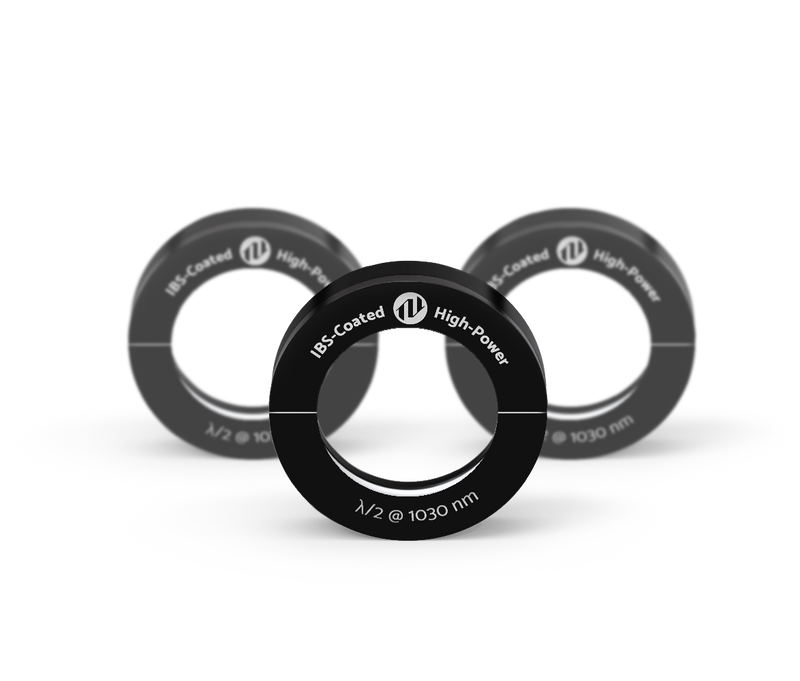

OPTOMAN’s SuperHero Power IBS-Coated Half-Waveplates are designed to thrive in ultrafast laser environments where conventional optics fall short. By introducing a precise λ/2 phase delay between orthogonal polarization axes, they enable efficient rotation of linear polarization – a key function for beam steering, power control, and polarization-sensitive experiments.

These waveplates feature air-spaced zero-order design with no glue, eliminating stress, drift, and degradation. Combined with IBS AR coatings (<0.1% reflectance), they deliver high LIDT and long-term stability, ensuring years of maintenance-free operation.

Optimized for high-performance femtosecond lasers at 1030 nm, these waveplates outlast alternatives and deliver unmatched reliability in demanding systems, including:

  • “PHAROS” and “CARBIDE” series by Light
    Conversion
  • “FSL1030X1” and “FSL1030X2” by Thorlabs
  • “FemtoBlade” by Lumentum
  • “Satsuma” by Amplitude Laser
  • “FemtoLux” by EKSPLA
  • “TruMicro” series by TRUMPF
  • “Monaco” series by Coherent
  • “Jasper X0” by RPMC Lasers
  • “FS Series” by Photonics Industries
