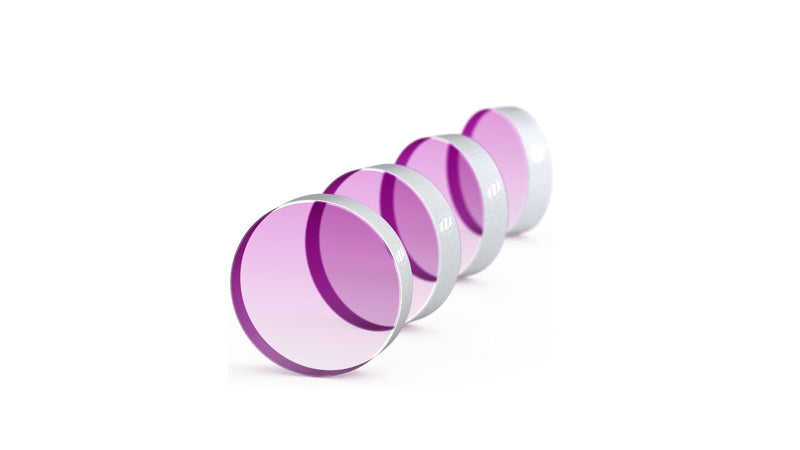

Ultrafast Laser Mirrors

Ultrafast Laser Mirrors

Ultrafast Laser Mirrors | PP-UVFS-12.7-3.0-ULLM5

€70,00

If an official quotation is needed or products are not in stock, please send us a request.
Products marked as CUSTOMIZED may have a minimum order quantity rule when requesting for a quote.

Material: UVFS
Diameter: 12.7 mm (+0/-0.1 mm)
Thickness: 3.0 mm (+/-0.05 mm)
Clear aperture: min. 10 mm
Surface quality, S1: 20-10 S-D
Surface flatness S1: λ/8 @ 633 nm over 4 mm aperture
Protective chamfers: 0.1-0.4 mm x 45°
Parallelism: <1 arcmin

Coatings (IBS):
S1: HRs>99.95% & HRp>99.9%@1010 - 1050 nm, AOI=45°, |GDD Rs|<10 fs^2, |GDD Rp|<20 fs^2
S2: Uncoated

Inspection Report

Rs>99.95% & Rp>99.9% @1010-1050nm, AOI=45° (ULLM5)

Calculated reflection values at 45° angle of incidence



Calculated GDD values at 45° angle of incidence

In-stock items ship the next business day via DHL. Estimated delivery time: 1–2 business days (EU), 3–5 business days (Rest of World). View full shipping policy.

OPTOSHOP bestseller coating

OPTOMAN’s Standard IBS-coated Ultrafast Laser Mirrors are designed to maintain high LIDT and minimize Group Delay Dispersion (GDD) for preserving pulse duration and handling high peak intensity of femtosecond and picosecond laser systems.

This mirror is optimized for operation at 1030 nm and a 45° angle of incidence, providing high reflectivity and low GDD for ultrashort laser pulses.

Mirror can be used for I harmonic of Yb:YAG based ultrafast laser systems, such as:

  • “PHAROS” and “CARBIDE” series by Light
    Conversion
  • “FSL1030X1” and “FSL1030X2” by Thorlabs
  • “FemtoBlade” by Lumentum
  • “Satsuma” by Amplitude Laser
  • “FemtoLux” by EKSPLA
  • “TruMicro” series by TRUMPF
  • “Monaco” series by Coherent
  • “Jasper X0” by RPMC Lasers
  • “FS Series” by Photonics Industries
