Wavelength Separators

Dichroic Mirrors

Dichroic Mirrors | PP-UVFS-12.7-6.0-DM235

€115,00

If an official quotation is needed or products are not in stock, please send us a request.
Products marked as CUSTOMIZED may have a minimum order quantity rule when requesting for a quote.

Only 2 pieces in stock!

CUSTOMIZED

Substrate material: UVFS
Diameter: 12.7 mm +0/-0.1 mm
Thickness: 6.0 mm +/-0.1 mm
Clear aperture: min 10 mm
Surface quality, S1/S2: 20-10 S-D per CA (MIL-PRF-13830B)
Surface flatness, S1: <λ/8@633 nm over 6 mm CA
Parallelism: < 5 arcmin
Protective chamfer: 0.2-0.3 x 45°
Chips: <0.2 mm stoned
Coatings (IBS):
S1 (arrow marks): HRs > 99.5% @ 266 nm + Rp<2%; Rs<10% @ 532 nm + Rp<2%; Rs<10% @ 1064 nm, AOI 45 deg.
S2: Uncoated
LIDT and lifetime enhanced design (ns pulse applications)

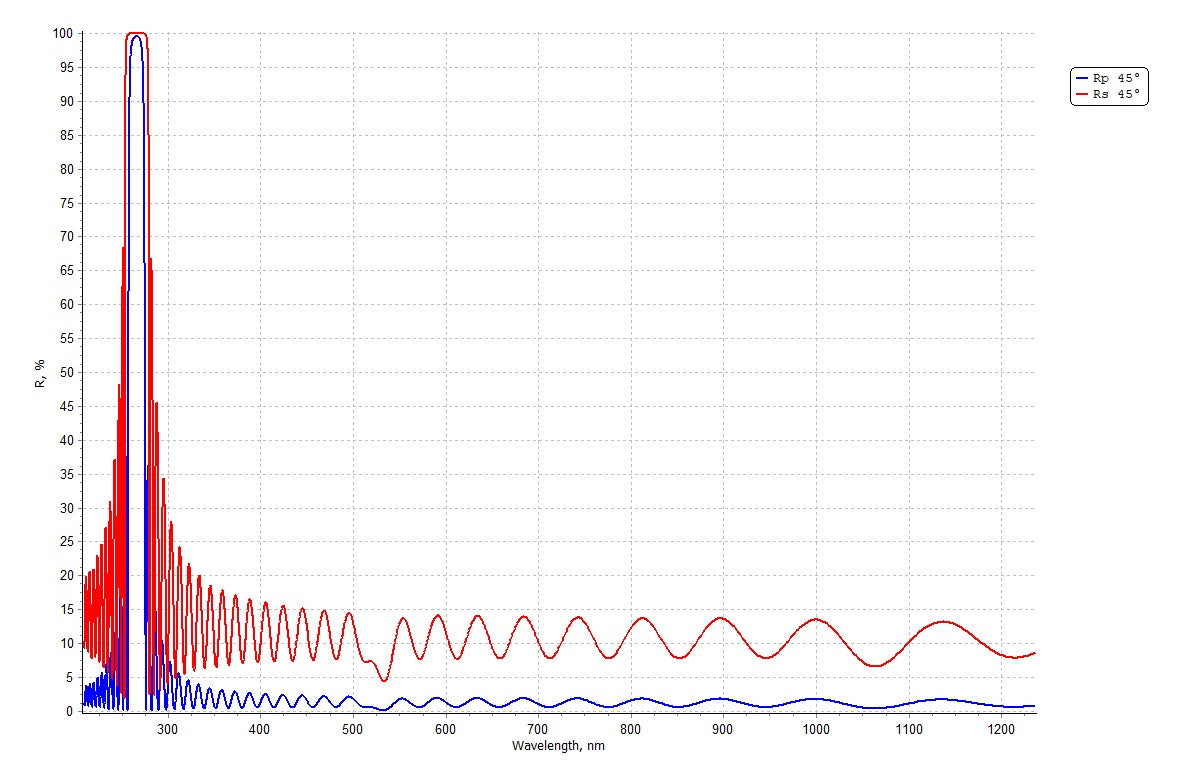

Inspection Report

HRs > 99.5% @ 266 nm + Rp<2%, Rs<10% @ 532 nm + Rp<2%, Rs<10% @ 1064 nm

In-stock items ship the next business day via DHL. Estimated delivery time: 1–2 business days (EU), 3–5 business days (Rest of World). View full shipping policy.

OPTOMAN’s Enhanced Lifetime IBS-coated Dichroic Mirrors are designed to deliver long-term optical performance, and higher LIDT in demanding laser applications. The Enhanced Lifetime technology directly translates into lower maintenance costs and reduced downtime.

These mirrors are optimized for reflecting 266 nm at a 45° angle of incidence, while transmitting 532 nm and 1064 nm, providing precise wavelength separation for laser pulses. With reflectance for IV harmonic and transmittance for I and II harmonics, this filter is optimized for Nd:YAG based laser systems, such as

  • “PicoFYb” by TOPTICA
  • “Atlantic” by EKSPLA
  • “The RGB-ALFA” series by Geola
  • “Aero” by Bright Solutions
  • “neoMOS” series by rpmc
  • “MPL” series by QS Lasers
  • “Cobolt Tor” series by HÜBNER Photonics
  • “Centurion +” by Lumibird
  • “CP64” by picophotonics
  • “QL-1064-7100” by ledlas
