Laser Mirrors

Laser Mirrors | PP-UVFS-50.8-9.52-LLM135

Name: PP-UVFS-50.8-9.52-LLM135
Brand: Optoman
SKU: PAN4064
Price: 355.0 EUR
Availability: InStock

€355,00

Qty 5+ > €337,25/piece
Qty 10+ > €301,75/piece
Qty 20+ > €266,25/piece
Discount will be applied in cart page
If an official quotation is needed or products are not in stock, please send us a request.
Products marked as CUSTOMIZED may have a minimum order quantity rule when requesting for a quote.

CUSTOMIZED

Material: UVFS
Diameter: 50.8 mm +0/-0.1 mm
Thickness: 9.52 mm +/-0.1 mm
Clear aperture: min 40 mm
Surface quality, S1: 20-10 S-D over CA MIL-PRF-13830B
Surface quality, S2: commercial polishing (80-50 S-D)
Surface flatness, S1: ~λ/3 @ 633 nm per CA
Surface irregularity, S1: <λ/8 @ 633 nm per CA
Parallelism: <5 arcmin
Protective chamfers: 0.2 - 0.3 mm x 45 deg
Chips: <0.3 mm stoned
Laser engraved arrow marks to S1

Coatings (IBS):
S1 (arrow marks): HRa>99.9% @ 940 nm - 980 nm, AOI=45°
Low absorption
S2: Uncoated
LIDT: >5 kW/cm2, 980 nm, CW (beam dia 8-30 mm)

Inspection Report

HRa>99.9% @ 940 nm - 980 nm

In-stock items ship the next business day via DHL. Estimated delivery time: 1–2 business days (EU), 3–5 business days (Rest of World). View full shipping policy.

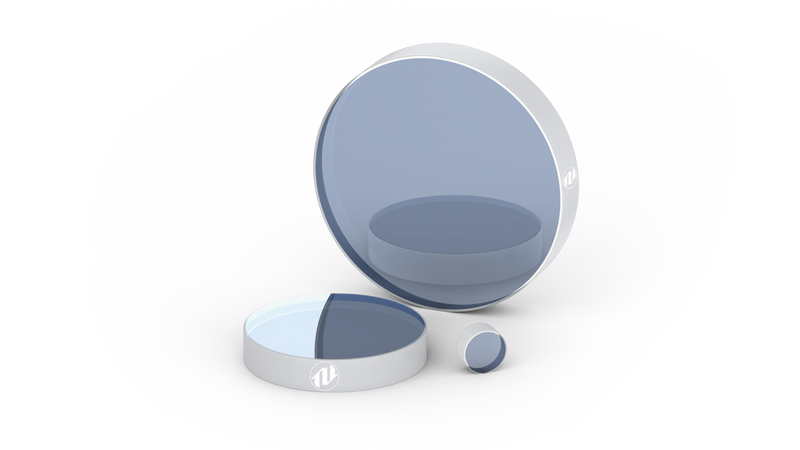

OPTOMAN’s Low-Loss IBS-coated Laser Mirrors are engineered to deliver minimal optical losses and extremely high reflectivity (R > 99.9%), ensuring minimal optical losses. These mirrors ensure near-total reflection with exceptionally low absorption and scatter, helping to preserve beam intensity and system efficiency over time.
Optimized for operation at 940 - 980 nm and a 45° angle of incidence, this mirror is a reliable choice where reducing optical loss is critical to system performance.
