Wide-angle and Broadband Low GDD Ultrafast Mirrors

Ultrafast Laser Mirrors | PP-UVFS-50.8-9.52-UBBHR18 (no SCC)

If an official quotation is needed or products are not in stock, please send us a request.
Products marked as CUSTOMIZED may have a minimum order quantity rule when requesting for a quote.

CUSTOMIZED

Material: UVFS
Diameter: 50.8 mm (+0/-0.1 mm)
Thickness: 9.52 mm (+/-0.1 mm)
Clear aperture: >80%
Surface quality, S1: 20-10 S-D
Surface flatness, S1: <λ/2@633 nm over CA
Surface flatness, S1: <λ/8@633 nm over 22 mm dia. CA
Parallelism: <5 arcmin
Protective chamfer: 0.2-0.3 mm x 45°

Coatings (IBS)
S1 (arrow marks): HRs >99.9 % @ 700 – 900 nm, HRp >99.5 % @ 730 - 870 nm, AOI=45° (|GDDrs| < 20 fs2)
S2: Uncoated

LIDT (measured):
> 0.2 J/cm2, 800 nm, 100 fs, 100 Hz, p-pol

Inspection Report

Rs>99.9% @ 700-900 nm, AOI=45° (UBBHR18)



Calculated reflection values for s-pol and p-pol at 45° angle of incidence for UBBHR18 mirrors

Calculated GDD values for s-pol and p-pol at 45° angle of incidence for UBBHR18 mirrors

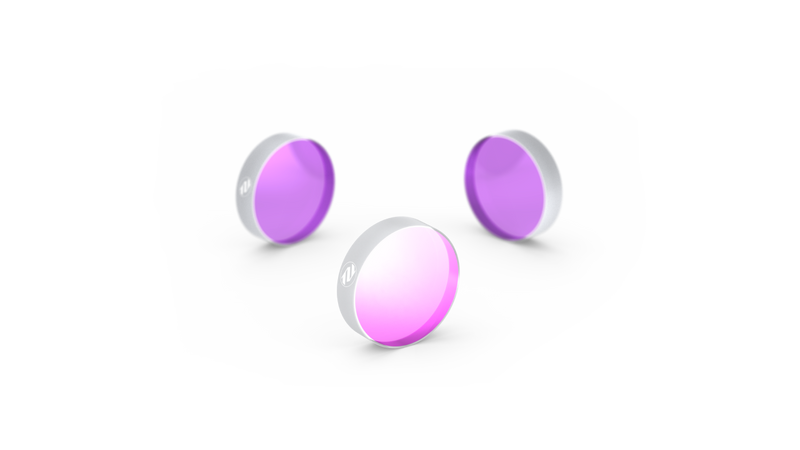

IBS coated Broadband Ultrafast Laser Mirror for Ti:Sapphire laser.
